Description:

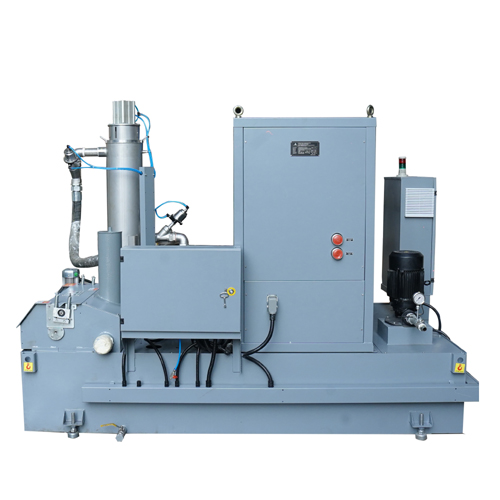

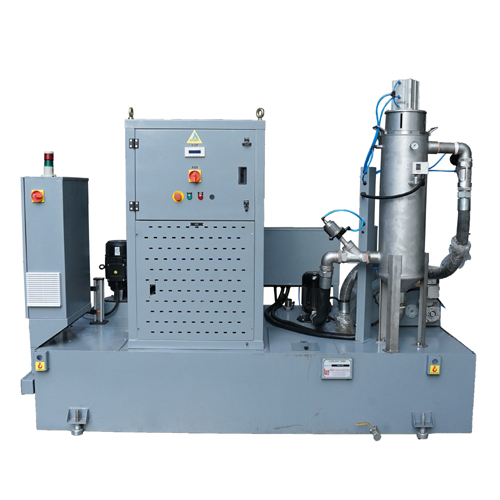

The Disc Filter is an eco-friendly regenerative filtration system designed to deliver continuous performance without the need for element replacement. It is highly suitable for water and neat oil-based coolants and operates efficiently without generating industrial waste or requiring manual attention. This advanced filtration unit uses a stainless steel filter element constructed from grooved plates and wave washers. The system filters out solid particles through precise gaps when compressed. When decompressed, the gaps widen to allow back-flushing, which removes trapped dust and contaminants, restoring the element for repeated use.
The back-flushing capability not only eliminates the need for consumable filter media but also promotes sustainability by generating zero waste. With a filtration level of 5 microns, the disc filter offers reliable performance in industrial applications. We UDLY TECHNOLOGIES PVT LTD are Manufacturers, Suppliers, Providers of Disc Filters in Mumbai, Navi Mumbai, Thane, and across India.
Top Features:
- No more element replacement!
- Suitable for water and neat oil base coolant
- No waste generated
- Manual attention not required
- Filtration level: 5 micron
Eco-Friendly Regenerative Filter:
- Stainless steel element with back-flushing capability
- No industrial waste generated
- No element replacement required
Technical Design:
- Stainless steel element made of grooved filter plates and wave washers
- Compressed state: Filters solid particles through gaps
- Decompressed state: Gaps widen to flush out dust/foreign matter
Regenerative Process:
- Back-flushing removes collected contaminants
- Repeated usage without replacing the filter element
- Wave washers ensure gap stability during cycles
Our unique element construction with back-flushing capability. The Stainless steel element of the filter is constructed of a series of grooved filter plates and wave washers placed one above the other. Decompressing the element widens the gap between filter plates and wave washers. While the gap is widened, dust and foreign matters caught between plates can be washed away by hack flushing the element. This re-stores the element and enables repeated use of the element. The gaps between filter plates are equally maintained by the wave washers to allow stable back-flush

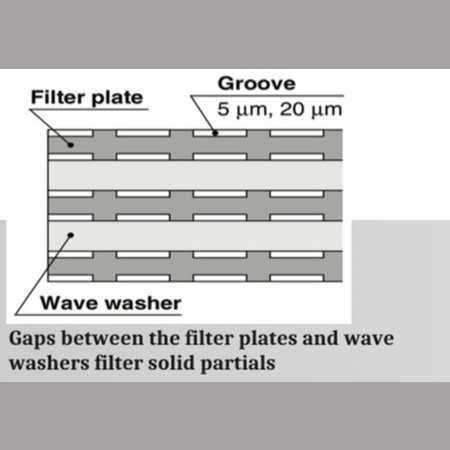

When Compressed

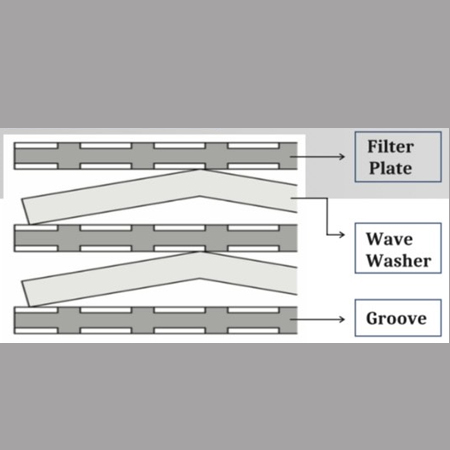

When Decompressed
